MSI Afterburner and other Windows-exclusive OC tools are notably absent from Linux, but there are equally powerful native alternatives. GreenWithEnvy is one of the go-to solutions for Nvidia cards, while CoreCtrl is a common choice for AMD GPUs.

These tools deliver essential GPU management features like control over fan curves, power limits, and clock frequency adjustments. MangoHud integration provides real-time performance metrics, creating a powerful toolkit for GPU tinkering.

Without further ado, here’s a guide to the most effective MSI Afterburner alternatives for Nvidia and AMD graphics cards.

Setting Up GreenWithEnvy for Nvidia GPUs

GreenWithEnvy delivers precise control over Nvidia GPUs on Linux systems, featuring advanced monitoring and overclocking capabilities.

Installation Steps

GreenWithEnvy deployment requires Flatpak package management. Execute these commands sequentially:

  1. Install Flatpak: sudo apt install flatpak
  2. Add Flathub repository: flatpak --user remote-add --if-not-exists flathub https://flathub.org/repo/flathub.flatpakrepo
  3. Install GreenWithEnvy: flatpak install flathub com.leinardi.gwe
  4. Enable Coolbits: sudo nvidia-xconfig --cool-bits=12

Basic Interface Overview

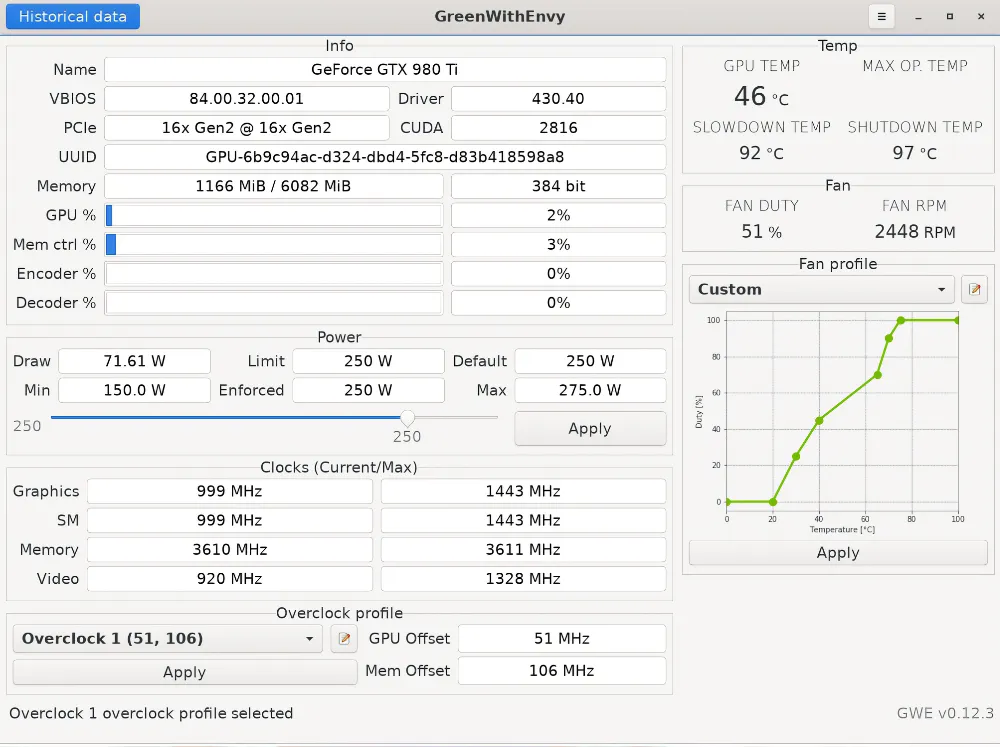

greenwithenvy gui
GreenWithEnvy’s dashboard presents vital GPU metrics including utilization rates, memory allocation, thermal readings, and power draw. Users access detailed hardware information such as model specifications, driver versions, clock frequencies, and performance trends.

Key Features

GreenWithEnvy comes with all the essentials needed for overclocking:

  • GPU and memory clock offset tuning
  • Power limit optimization
  • Temperature threshold monitoring

Root access enables advanced power management features, allowing you to set automated power configurations through systemd service definitions. Multiple profile support allows precise cooling management, including automatic profile restoration during system startup.

Installing CoreCtrl for AMD Cards

CoreCtrl stands as the premier AMD graphics card management solution for Linux users, delivering granular control over GPU parameters and performance metrics.

Key Features Overview

CoreCtrl’s technical capabilities extend across multiple GPU management domains. Key functions include:

  • Clock speed manipulation with voltage control
  • Temperature-based fan curve design
  • Power envelope modifications
  • Application-specific performance profiles.

CoreCtrl version 1.4.0 introduced significant upgrades including flexible graph visualization, CPU metric tracking, and specialized fan control algorithms for AMD RX 7000 series hardware. Profile management also enables precise optimization in specific scenarios.

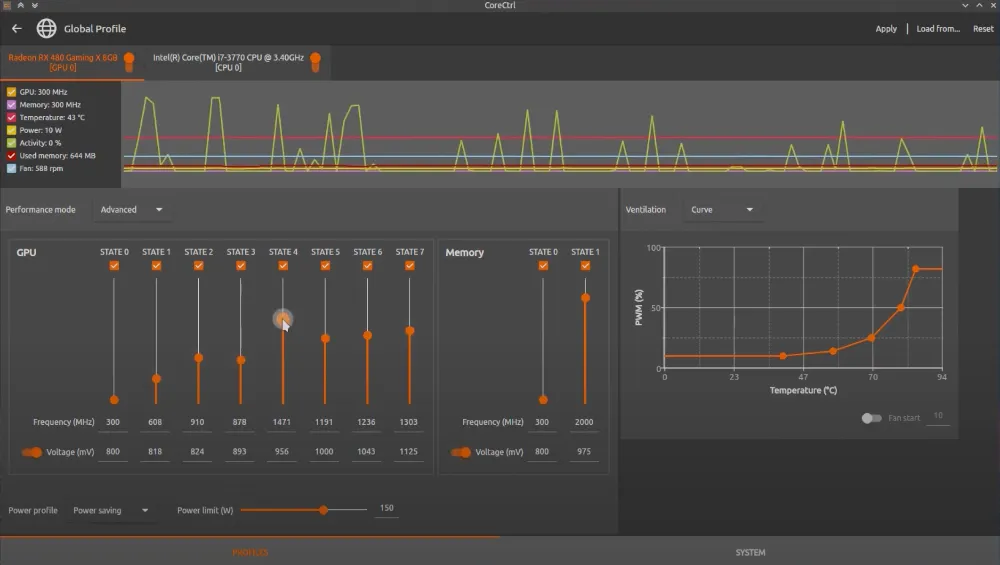

corectrl gui

System Requirements

CoreCtrl has a set of technical prerequisites. Qt5 libraries form the software backbone, and proper AMD driver integration. Maximum GPU control requires precise bootloader parameter configuration.

Setup Process

Package management commands differ across Linux distributions. Ubuntu-based systems require:

  1. Add the required PPA: sudo add-apt-repository ppa:ernstp/mesarc
  2. Update package list: sudo apt-get update
  3. Install CoreCtrl: sudo apt install corectrl

Fedora systems accept sudo dnf install corectrl, while Arch users execute sudo pacman -S corectrl. Manual compilation demands repository cloning followed by CMake-based building procedures.

Using MangoHud for Performance Monitoring

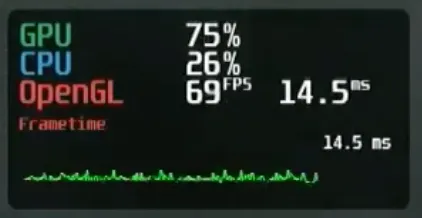

MangohudMangoHud functions as the definitive Vulkan and OpenGL overlay tool for Linux performance analysis. In combination with OC tools, it provides an experience similar to what you can do with Afterburner.

The software delivers real-time metric tracking capabilities across games and applications. MangoHud version 0.8.0 introduces multi-GPU display support and enhanced wayland keyboard mapping. Note that Intel GPU support requires Linux kernel 6.13+ for temperature monitoring capabilities.

Installation Guide

Package installation commands vary by Linux distribution. Debian-based systems require:

  1. Base package installation:
    sudo apt install mangohud

  2. 32-bit support addition:
    sudo apt install mangohud:i386


Arch-based system users require mangohud and lib32-mangohud from extra/multilib repositories. Flatpak deployments need Flathub repository configuration followed by:

flatpak install org.freedesktop.Platform.VulkanLayer.MangoHud

Configuration Options

MangoHud configuration hierarchy follows specific paths. Priority order includes:

  • /path/to/application/dir/MangoHud.conf
  • ~/.config/MangoHud/<application_name>.conf
  • ~/.config/MangoHud/MangoHud.conf

Runtime configuration uses environment variables. MANGOHUD_CONFIG enables parameter adjustments through comma-separated values. Default metrics include:

  • Frame rate monitoring
  • Frame timing analysis
  • CPU performance data
  • GPU utilization metrics

MANGOHUD_CONFIGFILE enables custom configurations, particularly valuable for Java and Python application monitoring.

Steam integration requires mangohud %command% launch parameters. Lutris configurations accept mangohud Command prefix modifications for overlay activation.

Benchmarking and Stability Testing

Before you dive into games with a new OC setting, it’s a good idea to run a few tests for stability. Much like the situation with MSI Afterburner, popular Windows benchmark tools like 3DMark is missing from Linux altogether. There are however a number of alternatives.

Stress Test Tools

Prime95 and stress-ng excel at system stability verification under maximum load conditions, whereas GpuTest provides GPU stress analysis through FurMark and TessMark testing modules.

Nvidia hardware benefits from gpu_burn diagnostics coupled with htop, iotop, and nvidia-smi monitoring utilities. These tools enable simultaneous analysis of processor utilization, memory bandwidth, I/O operations, and GPU performance metrics.

Gaming Benchmarks

Heaven Benchmark delivers intensive GPU stress validation through sophisticated rendering workloads. The software examines thermal performance while verifying stability under peak processing demands.

GL Mark 2 implements advanced diagnostic protocols examining:

  • Shader processing capabilities
  • Memory buffer operations
  • Texture processing efficiency
  • Complex scene rendering

Monitoring System Health

Hardware health validation requires multi-parameter analysis. HWMonitor enables real-time component tracking. Critical metrics include:

  • Thermal readings
  • Voltage stability data
  • Fan RPM measurements
  • Power draw patterns

tmux facilitates multi-metric monitoring through terminal multiplexing. This configuration enables simultaneous CPU, GPU, and memory performance analysis during stress testing procedures.

Thermal management is always critical, as GPU cores initiate thermal throttling at around 80-90°C.

Summary

Linux GPU overclocking tools match and surpass MSI Afterburner’s technical capabilities. GreenWithEnvy and CoreCtrl deliver precise hardware control, enabling advanced performance optimization across graphics card parameters.

MangoHud’s performance monitoring capabilities complement these overclocking utilities, creating a sophisticated toolkit for hardware optimization while preserving system integrity.
